Agentboard

---

🚀 Which setup is for you?

AgentBoard works as a Claude Code plugin or standalone server supporting Claude Code, Copilot CLI, and future agents.

🔷 Claude Code User? → Claude Code Plugin

Install the plugin inside any Claude Code session:

/plugin marketplace add edgeetech/agentboard
/plugin install agentboard@agent-board-local
/reload-plugins
/agentboard:open      # boots local server + opens UI in your browser

Requires: Node ≥ 22 or Bun ≥ 1.x · npm (or bun) on PATH · claude CLI ≥ 2.0.0 · ANTHROPIC_API_KEY env or active OAuth (claude /login) · Windows / macOS / Linux.

First run installs core deps automatically. The plugin marketplace ships only source — on the first /agentboard:open (or session-start hook) after install/upgrade, AgentBoard runs npm install (prefers bun install if present) inside the cached agent-board-core/ directory. Expect a one-time ~20 s pause. If install fails (no npm/bun on PATH, no network), the server exits with code 4 and prints the manual command to run.

🔶 Copilot CLI User? → See AGENTS.md § Copilot CLI Setup

Or run standalone server:

git clone https://github.com/edgeetech/agentboard.git
cd plugins/claude-code/agent-board-core
npm install
node --experimental-sqlite --experimental-strip-types --no-warnings server.ts
# Open http://localhost:3000

🤔 Not sure? → See AGENTS.md § 2. Supported Agents

---

---

⚡ Why AgentBoard?

Multi-agent AI is powerful, but the day-to-day is messy:

• 💸 No idea what each run cost until the bill arrives.
• 🕵️ Can't see why an agent did what it did — logs scattered.
• 🔁 "Just one more retry" turns into runaway loop.
• ☁️ Only options are cloud SaaS dashboards that ship your prompts off-box.

AgentBoard fixes that. Local kanban board, one SQLite per project, real-time cost per run, hard ceiling on rework loops, human approval gate before anything ships.

---

✨ What's inside

🟦🟧🟪🟩 Four roles, one flow	PM enriches → Worker codes → Reviewer verifies → Human approves. Pick WF1 (full loop) or WF2 (skip Reviewer).
🕹️ Auto or semi-auto mode	Auto — agents drive transitions end-to-end. Semi — you drive status changes, agents only annotate (comments + ACs). Switch per project, any time.
🧾 Acceptance Criteria, enforced	PM writes 3–7 testable ACs. Reviewer must check them. Server rejects finishes that skip the audit.
💰 Real-time cost per run	Every run parses SDK usage events and stamps cost_usd from latest Opus / Sonnet / Haiku pricing. Project header shows all-time, 7d, 30d totals.
🤖 Multi-agent execution	Run tasks with Claude agents (default), Codex CLI, or Copilot CLI (for capability mix). Per-role config: PM with Claude, Worker with Copilot, Reviewer with Codex — set per-project or override per-task. Manual dispatch can also one-shot a specific provider for a single run.
🏛️ Council persona	Configure any role as a council of 2–5 ordered members across mixed providers. Members run round-robin — each one sees prior outputs; the last member synthesises the canonical result. Fail-fast on any member error. Council parents count as one running run against max_parallel, so a 3-member council does not starve the queue.
🧭 Inner phase machine	Each run drives an FSM: DISCOVERY → REFINEMENT → PLANNING → EXECUTING → VERIFICATION → DONE (plus `cancel
🪪 Project-scoped skills	Server scans <repo>/**/.claude/skills/* (folder skills with SKILL.md and flat <name>.md) on project create / repo change / manual rescan. Disk is source of truth; UI edits write back. 6 read-only built-ins (code-review, unit-tests, tech-spec, refactor, api-client, release-notes) merged into the same catalog. Agents resolve by name via mcp__abrun__use_skill with fuzzy suggestions on miss.
🎯 Concern packs	Pluggable concern lists steer PM/Worker/Reviewer prompts. Built-in packs: well-engineered, beautiful-product, long-lived. Custom packs per project via concerns_json.
🔁 Bounded rework loop	Max 3 reviewer rejects per task. After that, task stalls with "Retry from Worker" button — no runaway agents.
🔄 Automatic retry with backoff	Failed runs automatically re-enqueue with exponential backoff (1s → 2s → 4s, capped at 5min, max 3 attempts). Retry history logged in retry_state per run. Configurable via max_retry_attempts / max_retry_backoff_ms.
🔗 External tracker sync	Connect Linear, GitHub Issues, or GitLab to a project. Background poller creates agentboard tasks from incoming issues, marks tasks done when issues hit terminal state. Config via tracker_config table; REST API at /api/projects/{code}/tracker.
🛡️ Workspace path safety	Per-task workspaces validated against path traversal (../) and symlink attacks before creation. Artifact caches (.cache, node_modules/.cache, .vite, .turbo, etc.) cleaned between runs. Shell lifecycle hooks (afterCreate, beforeRun, afterRun, beforeRemove) with 30s timeout.
🔒 Local-only by design	Binds 127.0.0.1, DNS-rebind guard, Bearer + per-run rotated tokens, whitelisted child env. AWS / GitHub / SSH secrets in your shell are not passed to spawned agents.
🪝 Step into any run	Each run gets --session-id. One click copies claude --resume <id> so you can jump into the live transcript from your terminal.
🎨 9 themes, light + dark	AgentBoard, EdgeeTech, Primer, Monochrome, Neon, Warm Tones, Muted Pastels, Deep Jewel, Vibrant.

Server: Node ≥ 22, vanilla node:http, node:sqlite (built-in). The HTTP server uses only Node.js standard library; the overall plugin package includes a small set of production dependencies (Claude SDK, Commander, LiquidJS, Pino) for agent execution and background services.

---

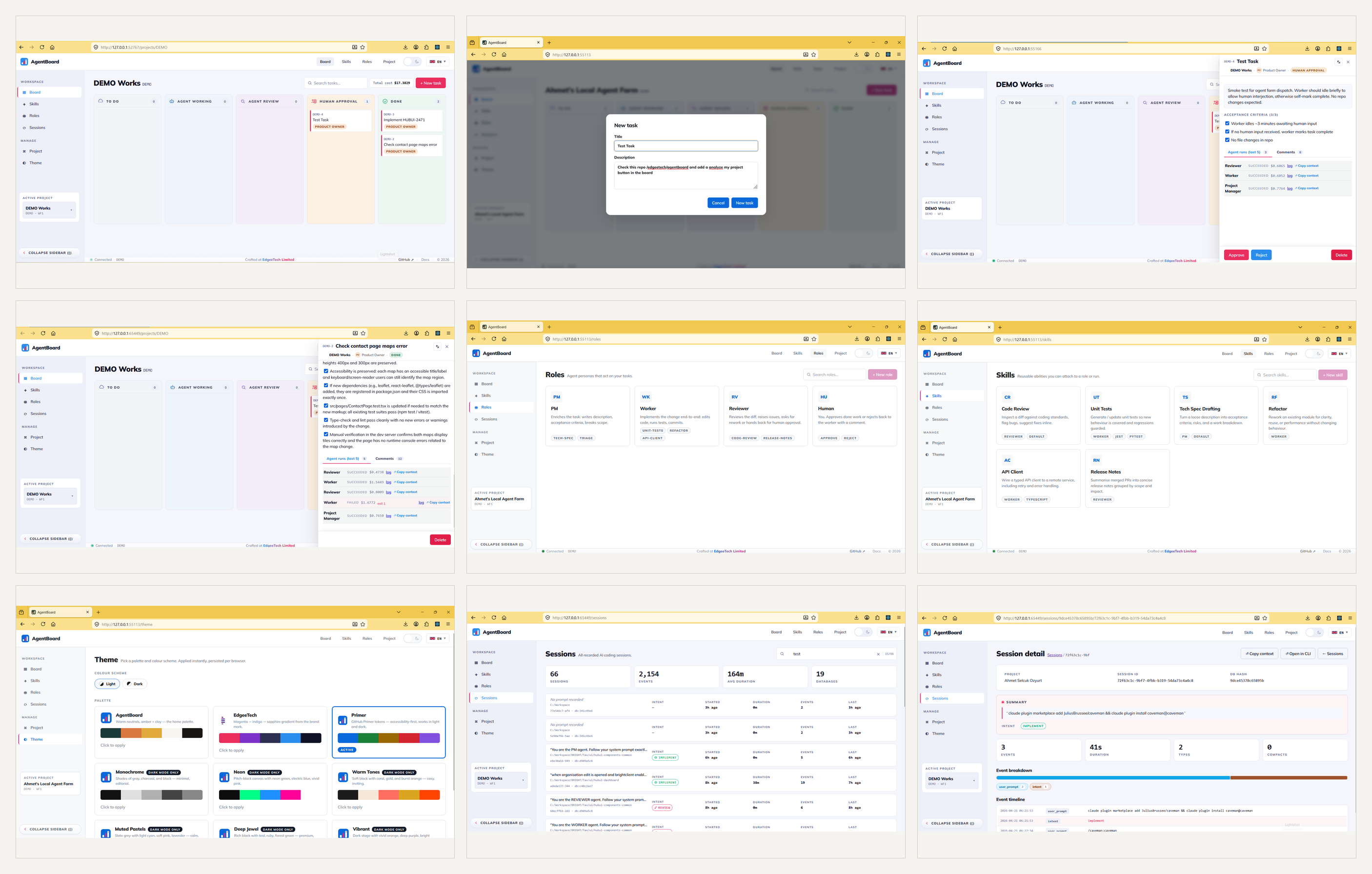

🖼️ Product tour

Nine screens in one image — board, task creation, run detail with cost + ACs, comment audit trail, roles, skills, themes, sessions index, session timeline.

---

🧠 How it works

AgentBoard routes tasks to the right executor — Claude SDK, Codex CLI, Copilot CLI, or future agents — based on project/task configuration. See AGENTS.md § Executor Lifecycle for full details.

Building on top of AgentBoard? All board reads/writes go through the local HTTP API at http://localhost:<port> (port + bearer token in ~/.agentboard/config.json). The canonical endpoint reference — tasks, projects, costs, tracker, skills, runs, logs, sessions — is AGENTS.md → Reference: HTTP API Endpoints. Agent role prompts (PM / Worker / Reviewer) point at the same table; do not open the SQLite DBs under ~/.agentboard/projects/*.db directly.

   Your AI agent platform
             │  (stdio MCP — read-only board + approve/reject)
             ▼
   ┌──────────────────────────────────────────────────────────────┐
   │  AgentBoard core server  (Node, 127.0.0.1)                   │
    │  • REST + JSON-RPC HTTP MCP (abrun — for agents)             │
   │  • Per-project SQLite (WAL, schema v5)                       │
    │  • Multi-executor routing: Claude SDK + Codex + Copilot     │
   │  • Inner phase machine (DISCOVERY→…→DONE) per run            │
   │  • Skill scanner: <repo>/**/.claude/skills/* + 6 built-ins   │
   │  • RetryManager: exponential backoff, max 3 attempts         │
   │  • TrackerPoller: Linear / GitHub / GitLab background sync   │
   │  • Reaper: 15min heartbeat timeout                           │
   └──────────┬───────────────────────────────────────────────────┘
              │
   ┌──────────┴────────────┐
   ▼                       ▼
  PM agent            Worker agent       (and Reviewer in WF1)
  └─ writes ACs       └─ edits files
                        no commits, no branches

State machine:

  todo ─▶ agent_working ─▶ agent_review ─▶ human_approval ─▶ done
                            └─── rework loop, max 3 ────┘

Two workflows, picked per project at creation:

• WF1 — Todo → Working → Review → Approval → Done (full loop with Reviewer). See AGENTS.md § Workflows
• WF2 — Todo → Working → Approval → Done (skip Reviewer step)

Two dispatch modes, switchable any time:

• 🤖 Auto (default) — agents claim runs, change status, hand off. You only step in at Human Approval.
• 🕹️ Semi — you stay in the driver's seat. Agents are blocked from status/assignee changes; they may only add comments and acceptance criteria. Server returns semi-automated mode: agents may not change status/assignee — add comments only; user drives transitions if a run tries.

---

🛠️ Claude Code Plugin Commands

If using AgentBoard as a Claude Code plugin, these slash commands are available:

Command	Does
/agentboard:open	Boots (or reuses) local server, opens UI in default browser.
/agentboard:stop	SIGTERMs the server. Children in flight finish on their own.
/agentboard:doctor	Health checklist: Node/Bun version, claude CLI, auth, data dir, DB schema, pricing freshness, available updates.
/agentboard:update	Checks GitHub main for newer plugin version, prints upgrade commands.
/agentboard:delete-project	Interactive: pick project → confirm → DB moved to ~/.agentboard/trash/ (manual restore possible).

Using Copilot CLI or standalone server? See AGENTS.md § Getting Help for how to interact with AgentBoard.

---

🔒 Security & privacy

• 127.0.0.1 only. Server refuses any Host header that isn't 127.0.0.1:<port> or localhost:<port> (DNS-rebind guard, returns 421).
• Bearer + per-run tokens. 32-byte hex token in ~/.agentboard/config.json (0600 on Unix, ACL'd on Windows). Each run gets a run_token issued exactly once at claim_run.
• Whitelisted child env. Spawned agents receive only PATH, HOME, USER, LANG, TZ, Claude auth vars, and Windows OS basics. AWS, GitHub, SSH, GCP, cloud-SDK secrets dropped.
• CSP nonce + HttpOnly cookie on the UI. No inline scripts without nonce.
• No telemetry. Nothing leaves your machine. Logs at ~/.agentboard/logs/<run_id>.ndjson are full Claude transcripts — treat data dir as sensitive.

---

📂 Where data lives

Outside the repo, untouched by plugin upgrades:

~/.agentboard/                  (%USERPROFILE%\.agentboard on Windows)
  projects/<code>.db            one SQLite per project (WAL, schema v5)
  logs/<run_id>.ndjson           Claude SDK structured events
  logs/<run_id>.err.log         captured stderr
  run-configs/<id>.json         tmp MCP config per run (deleted on exit)
  trash/<code>-<timestamp>.db   deleted projects (manual restore possible)
  config.json                   port, pid, token, server_id, active project
  server.lock                   single-instance lock

Per-project DB tables (schema v5):

Table	Purpose
project	Project config — workflow, repo path, agent provider, concerns_json, scan_ignore_json, allow_git
task	Tasks with status, assignees, acceptance criteria, discovery_mode
task_history	Full audit trail of every status transition
task_attachment	Files or URLs attached to a task
task_debt	Per-task debt items recorded during a run (tech debt, follow-ups)
agent_run	Agent runs with cost, session-id, attempt count, phase, phase_state_json, phase_history_json
agent_activity	Live event log (phase transitions, tool calls) — backs the SSE stream
retry_state	Retry history per run (backoff delay, error, next attempt)
tracker_config	External tracker connections per project
tracker_issue	Synced issues from external trackers
skill	Skills discovered in <repo>/**/.claude/skills/* (folder + flat)
skill_scan	Scan run history (status, started/finished, errors)
meta	DB schema version (currently 5)

---

🧰 Tech stack

Layer	Stack
Server	Node ≥ 22, vanilla node:http, node:sqlite (built-in). TypeScript executed directly via --experimental-strip-types (no JS emit). Production deps: commander · liquidjs · pino · zod.
Agent runners	Claude SDK (@anthropic-ai/claude-agent-sdk) — in-process, streaming. Codex CLI — subprocess. Copilot SDK (@github/copilot-sdk) — in-process, mirrors Claude runner contract. Multi-executor routing based on project/task configuration.
UI	React 18 · Vite · TanStack Query · Zustand · @dnd-kit · react-i18next
MCP	Two surfaces — abrun (HTTP, for spawned agents) and agentboard (stdio, for your interactive session). Names differ deliberately so --strict-mcp-config filters cleanly.
Pricing	Opus 4.7 / Sonnet 4.6 / Haiku 4.5 + Copilot Pro, versioned. Unknown model → $0 + uncosted flag — never silently wrong numbers. See AGENTS.md § Supported Agents for per-agent pricing.
Tests	Vitest · 231 tests across 27 files (state machine, phase machine, phase repo, postflight phase gate, retry, tracker, workspace safety/manager, supervisor, turn timeout, rate limiter, prompt builder, event bus, executor resolution, cost computation, skill repo, skill scanner, skill scan worker, api-skills, api-mcp use_skill, concerns, discovery modes, codex config, copilot runner, run hooks, folder rules, string distance, project triggers). Run via npm test. Quality gate: npm run check (typecheck && lint && format:check).

---

🔗 External tracker sync

Connect a Linear, GitHub Issues, or GitLab project to auto-populate agentboard tasks:

# POST /api/projects/{code}/tracker
{
  "kind": "github",
  "api_key_env_var": "GITHUB_TOKEN",
  "project_slug": "owner/repo",
  "active_states": ["open"],
  "terminal_states": ["closed", "merged"],
  "poll_interval_ms": 300000
}

# Enable / disable polling
POST /api/projects/{code}/tracker/enable
POST /api/projects/{code}/tracker/disable

# Force an immediate sync
POST /api/projects/{code}/tracker/sync

# List synced issues
GET /api/projects/{code}/tracker/issues

The background TrackerPoller starts 5 s after boot, checks each configured project on its own schedule, and syncs new/updated issues as agentboard tasks. Deleted or terminal issues are resolved automatically.

---

🔄 Automatic retry with backoff

Failed agent runs (non-completed status or unhandled exception) are automatically retried with exponential backoff:

Attempt	Delay
1 → 2	1 s
2 → 3	2 s
3 (max)	permanent failure

Configure per-project in the project config or via env:

{ "max_retry_attempts": 3, "max_retry_backoff_ms": 300000 }

Each retry creates a new agent_run row with an incremented attempt counter, and a retry_state row recording the delay and error message. The run.failed SSE event carries { permanent: true } on the last attempt.

---

Spawned agents run with --strict-mcp-config, so only the per-run abrun HTTP MCP is loaded by default. Two opt-in knobs:

1. Inherit ~/.claude.json MCPs — set "inherit_user_mcps": true in ~/.agentboard/config.json (or scope it: ["mcp-atlassian"]).
2. Custom MCPs — drop a mcpServers block in ~/.agentboard/mcps.json, merged into the per-run config.

The Skill tool is in every role's allowlist, so agents can invoke your installed skills (caveman, ctx-*, etc.) via Skill(name).

---

🪝 Stepping into a running agent

Each run is spawned with --session-id <uuid>. The task detail panel has an Open in CLI button per run that copies:

claude --resume <session-id>

Paste in a terminal at the project repo and you're inside the agent's session. If the run is still live, the button reads Join in CLI and warns you that resume may fork the session.

---

🗺️ Roadmap

• 🛡️ Per-run rate limiting on MCP mutations
• 💱 /agentboard reprice skill — recompute historical run costs when Anthropic prices change
• 🔍 Auto-discover plugin-registered MCPs (today, mirror them into ~/.claude.json or mcps.json)
• 🌳 Skill-scan UI tree view (deferred — table view ships today)

---

🤝 Contributing

Issues, PRs, feedback welcome at github.com/edgeetech/agentboard.

For internals — state machine rules, dispatch logic, sharp edges — see CLAUDE.md.

---

📄 License

Elastic License 2.0. You may self-host and modify freely. You may not offer AgentBoard as a managed service to third parties.

---
